40V Max Framing Nailer XGT ®
Nail type, Clipped – head

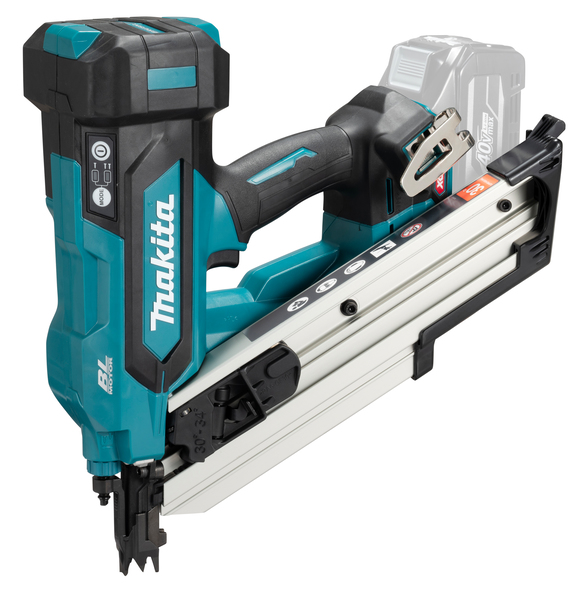

Model BN001G is a framing nailer powered by a 40V Max XGT Li-Ion battery
Significantly improved rapid firing capability, which is superior. Increased compression speed of a pneumatic spring that allows for driving nails up to 90mm with a driving feel very close to that of a pneumatic nailer
User benefits

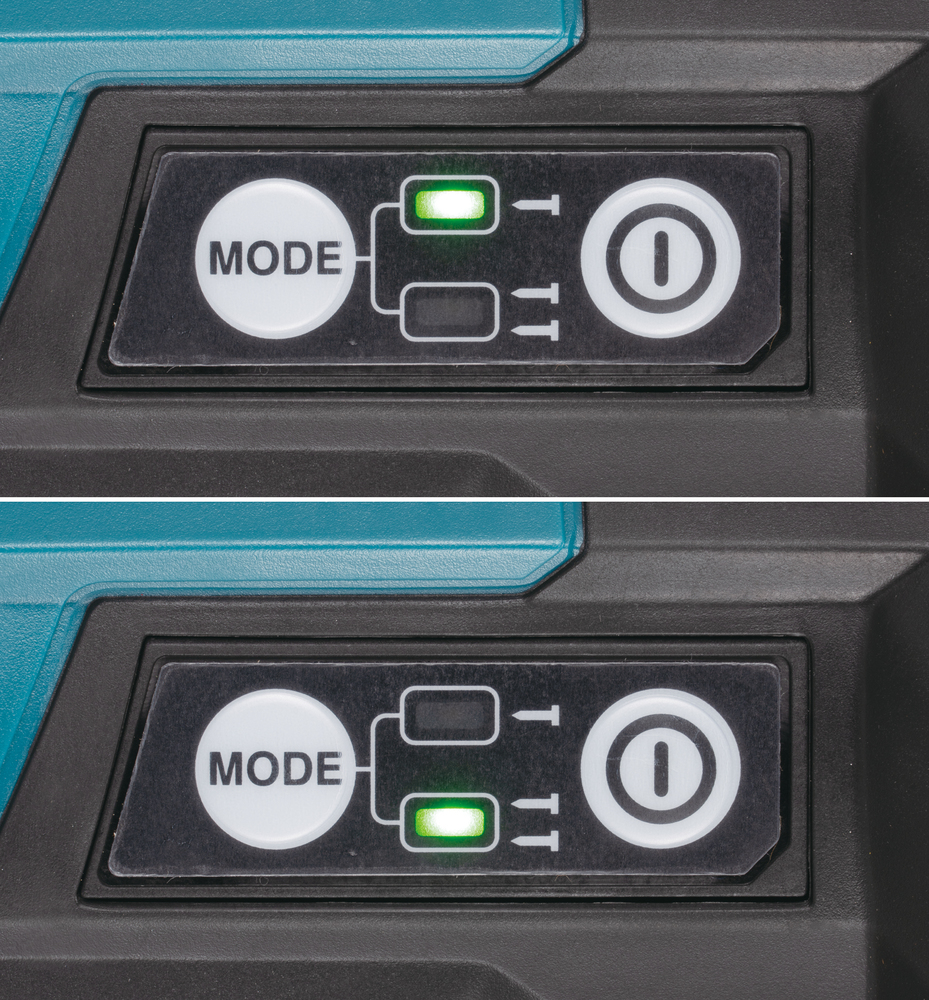

- Built-in LED light with pre-glow and afterglow functions illuminates the work area
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
| Technical specifications | |
|---|---|
| Voltage XGT | Yes |
| Nominal Battery Voltage | 40 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Figure of nail head | Clipped |
| Nail Length | 50 – 90 mm |
| Nail Diameter | 2,9 – 3,3 mm |
| Fastener Gauge | 2,9 – 3,3 Ga |
| Fastener Magazine Capacity | 51 – 58 |
| Magazine Angle | 30 – 34 º |
| Sound Power Level (LWA) | 101 dB(A) |
| Sound Pressure Level (LpA) | 90 dB(A) |
| Product net weight | 4,6 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 5,3 – 6,5 kg |
| Product Dimensions (L x W x H) | 326 x 186 x 358 mm |
| Vibration Level (3 axes) | 3,6 m/s² |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Depth Adjustment | Yes |
| Brushless Motor | Yes |
