Combi Kit – G-Series

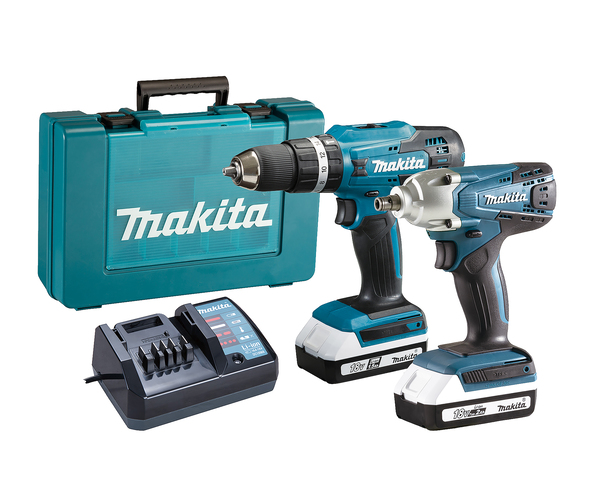

Two pc G-Series kit containing HP488D Combi Drill and TD127D Impact Driver
| Technical specifications | |
|---|---|
| Nominal Battery Voltage | 18 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Number of Batteries Supplied | 2 |
| HP488D: | |
| G-series: | Yes |
| Nominal Battery Voltage: | 18 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): | Li-ion |
| No load speed: | 0 – 400 / 1400 min⁻¹ |
| Max. fastening torque Hard/Soft: | 42 / 24 Nm |
| Torque setting: | 16 |
| Impacts per Minute (IPM): | 0 – 6000 / 21000 min⁻¹ |
| Max. Drilling Diameter in Masonry: | 13 mm |
| Max. Drilling Diameter in Steel: | 13 mm |
| Driving Shank: | 1/2″-20UNF “ |
| Drill Chuck Capacity: | 1,5 – 13 mm |
| Sound Power Level (LWA): | 92 dB(A) |
| Sound Pressure Level (LpA): | 81 dB(A) |
| Noise Uncertainty (K Factor): | 3 dB(A) |
| Tool weight with battery: | 1,8 kg |
| Product Dimensions (L x W x H):: | 239 x 83 x 240 mm |
| Max Torque: | 47 Nm |
| Drilling Capacity Wood (Auger Bit): | 36 mm |
| Drilling Capacity Wood (Self-feed bit): | 35 mm |
| Drilling Capacity Flat bit: | 36 mm |
| Drilling Capacity Hole Saw: | 51 mm |
| Electronic brake: | Yes |
| Product net weight: | 1,4 kg |
| Vibration Level, Drilling into metal: | ≤ 2,5 m/s² |
| Vibration Uncertainty (K Factor), Drilling into metal: | 1,5 m/s² |
| Vibration Level, Impact Drilling into Concrete: | 9,5 m/s² |
| Vibration Uncertainty (K Factor), Impact Drilling into Concrete: | 1,5 m/s² |
| TD127D: | |
| G-series: | Yes |
| Nominal Battery Voltage: | 18 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): | Li-ion |
| No load speed: | 0 – 2300 min⁻¹ |
| Max Fastening Torque Impact Drill: | 140 Nm |
| Tightening Capacity Standard Bolt: | M5 – M14 |
| Capacity machine screw: | M4 – M8 |
| Tightening Capacity High Tensile Bolt: | M5 – M12 |
| Impacts per Minute (IPM): | 0 – 3000 min⁻¹ |
| Driving Shank: | 1/4 “ |
| Sound Power Level (LWA): | 104 dB(A) |
| Sound Pressure Level (LpA): | 96 dB(A) |
| Noise Uncertainty (K Factor): | 3 dB(A) |
| Tool weight with battery: | 1,5 kg |
| Product Dimensions (L x W x H):: | 173 x 82 x 225 mm |
| Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool: | 8,5 m/s² |
| Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool: | 2,0 m/s² |
