Flat-head Angle Grinder XGT ®
40Vmax, 125 mm, 3000 – 9000 min⁻¹

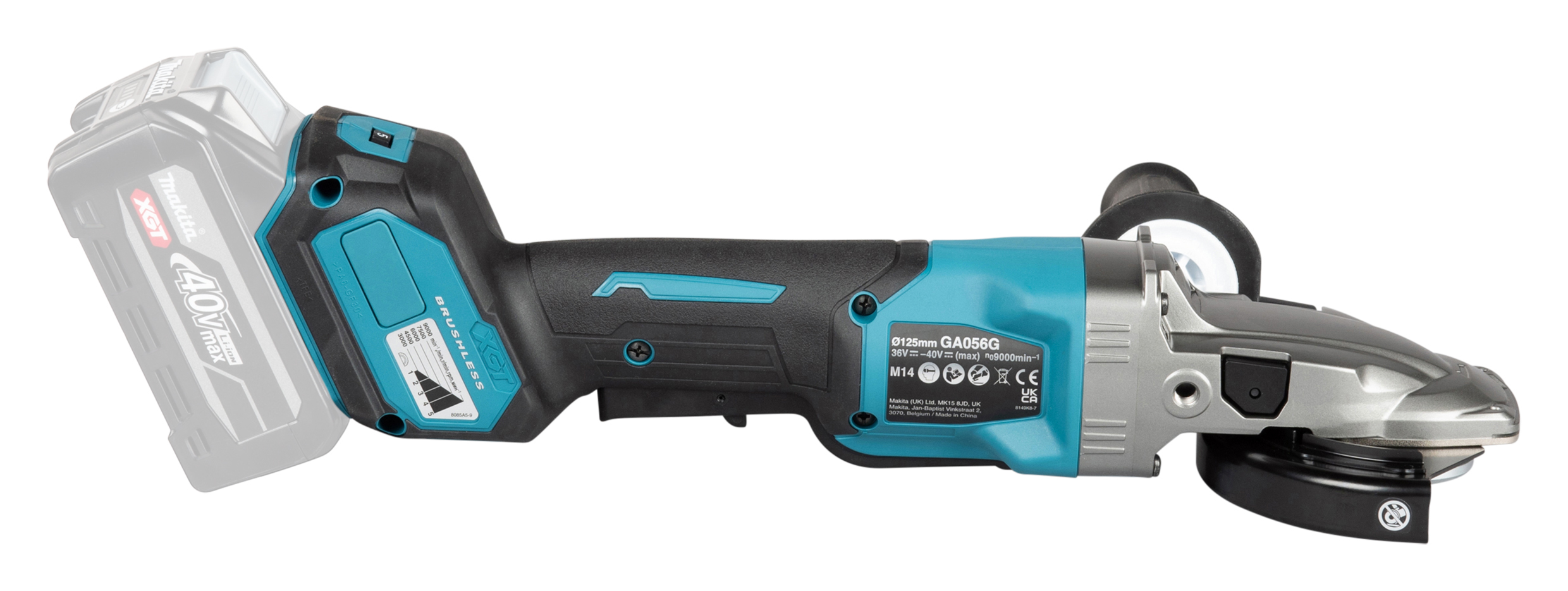

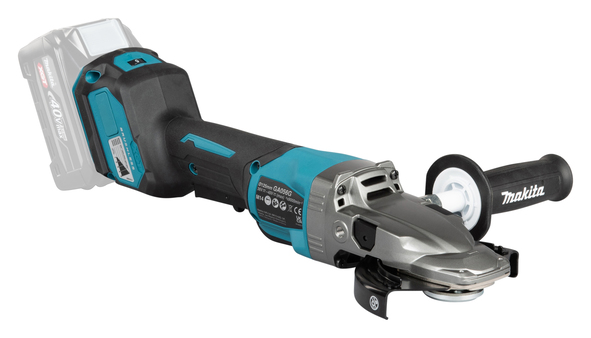

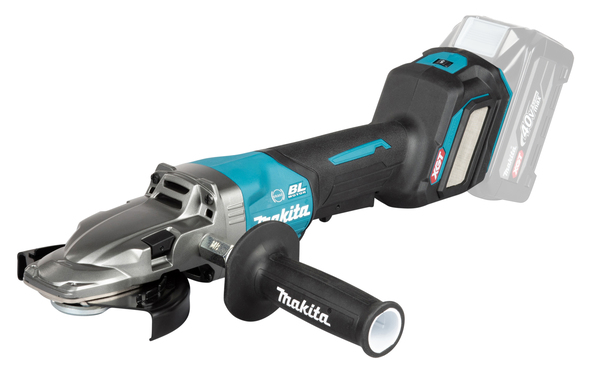

Model GA056G is a 125mm flat head angle grinder powered by a 40V Max XGT Li-Ion battery.
Features a Paddle Switch. Reduced access angle at the tip enables excellent workability for deburring in confined or recessed areas. Equipped with a newly designed tool-less wheel cover for flat head angle grinders, allowing access at angles as small as 39°
User benefits
- Paddle switch; Easy-to-hold slim grip achieved by optimised parts allocation
- Active Feedback sensing Technology (AFT) stops the engine if the rotation suddenly stops
- Anti-restart function minimises accidental start-up
- Electric brake for maximum productivity and increased operator safety
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Soft start for smooth start-ups
- Battery protection system automatically shuts off power when the battery level is low
| Technical specifications | |
|---|---|
| Nominal Battery Voltage | 40 V |
| Voltage XGT | — |
| Brushless Motor | Yes |
| No load speed | 3000 – 9000 min⁻¹ |
| Disc Diameter | 125 mm |
| Anti-Restart Function (NVR Switch) | Yes |
| Electronic brake | Yes |
| Sound Power Level (LWA) | 92 dB(A) |
| Sound Pressure Level (LpA) | 84 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Tool weight with battery | 3,1 – 4,4 kg |
| Product Dimensions (L × W × H) | 483 × 140 × 136 mm |
| Max. Depth of Cut | 30 mm |
| Dead Man’s Switch (No Lock-On) | Yes |
| Product net weight | 2,4 kg |
