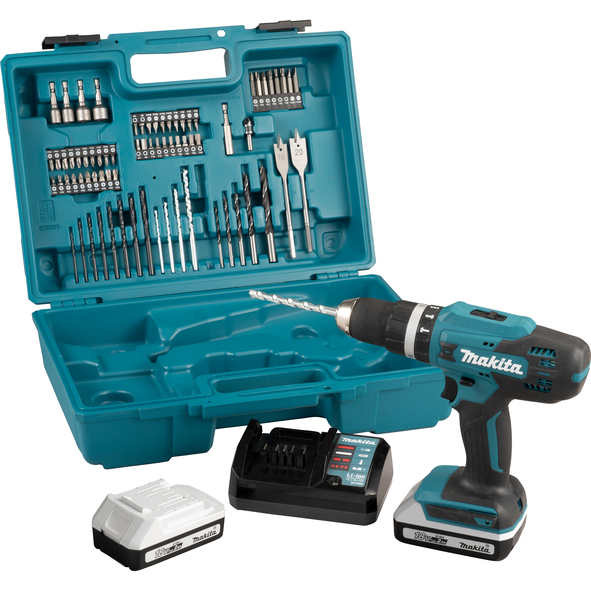

Combi Drill G-Battery
18V • 42 Nm • 0 – 1 400 min⁻¹
G-Series cordless hammer driver drill for demanding use
All metal gear construction ensures high transmission durability. Compact and lightweight design for easy handling and high maneuverability. Electric brake for maximum productivity and increased operator safety.
User benefits
- The rubber coating on the handle ensures a firm working grip
- Compact and lightweight design
- Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
- Low noise level for pleasant work.
| Technical specifications | |
|---|---|
| G-series | Yes |
| Nominal Battery Voltage | 18 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| No load speed | 0 – 400 / 1400 min⁻¹ |
| Max. fastening torque Hard/Soft | 42 / 24 Nm |
| Torque setting | 16 |
| Impacts per Minute (IPM) | 0 – 6000 / 21000 min⁻¹ |
| Max. Drilling Diameter in Masonry | 13 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Driving Shank | 1/2″-20UNF “ |
| Drill Chuck Capacity | 1,5 – 13 mm |
| Sound Power Level (LWA) | 92 dB(A) |
| Sound Pressure Level (LpA) | 81 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 1,8 kg |
| Product Dimensions (L x W x H) | 239 x 83 x 240 mm |
| Max Torque | 47 Nm |
| Drilling Capacity Wood (Auger Bit) | 36 mm |
| Drilling Capacity Wood (Self-feed bit) | 35 mm |
| Drilling Capacity Flat bit | 36 mm |
| Drilling Capacity Hole Saw | 51 mm |
| Electronic brake | Yes |
| Product net weight | 1,4 kg |
| Vibration Level, Drilling into metal | ≤ 2,5 m/s² |
| Vibration Uncertainty (K Factor), Drilling into metal | 1,5 m/s² |
| Vibration Level, Impact Drilling into Concrete | 9,5 m/s² |
| Vibration Uncertainty (K Factor), Impact Drilling into Concrete | 1,5 m/s² |
