Reciprocating Saw XGT ®
40V Max 0 – 2,200 min⁻¹ 26 mm

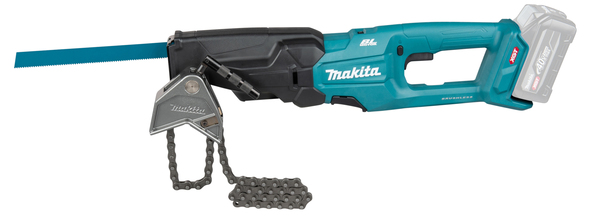

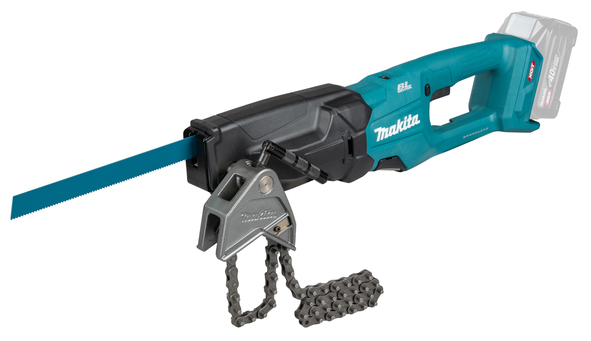

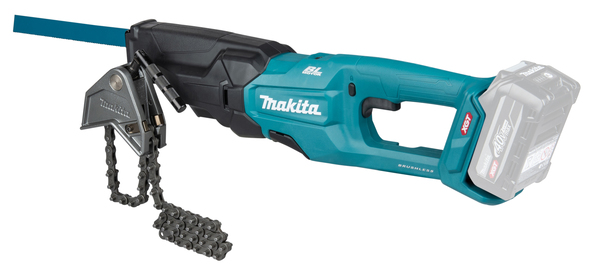

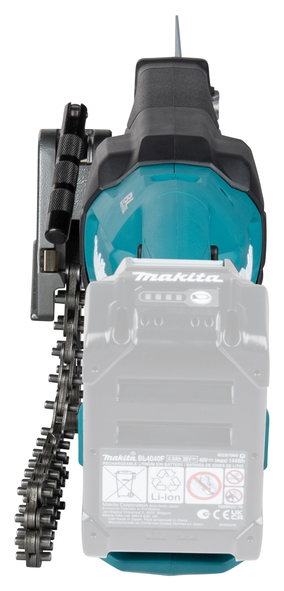

Model JR003G is a reciprocating saw equipped with a chain vise, powered by a 40V Max XGT Li-Ion battery
The tool features cutting accuracy improved by the newly engineered chain vise to securely fix the workpiece, while delivering an excellent combination of the power and durability required for cutting large diameter pipes.
User benefits
- Brushless maintenance-free and long-life motor
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection system automatically shuts off power when the battery level is low
| Technical specifications | |
|---|---|
| Nominal Battery Voltage | 40 V |
| Voltage XGT | — |
| Brushless Motor | Yes |
| Length of Stroke | 26 mm |
| Max. Cutting Capacity in Wood (90°) | 255 mm |
| Max. Cutting Capacity in Steel Pipe | 220 mm |
| Sound Power Level (LWA) | 90 dB(A) |
| Sound Pressure Level (LpA) | 82 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 4,5 – 6,8 kg |
| Product Dimensions (L × W × H) | 583 × 103 × 152 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Strokes per Minute (SPM) | 0 – 2200 min⁻¹ |
| Product net weight | 3,8 kg |
| Vibration Level, Cutting Boards | 14,9 m/s² |
| Vibration Uncertainty (K Factor), Cutting Boards | 1,6 m/s² |
| Vibration Level, Cutting Wooden Beam | 15,3 m/s² |
| Vibration Uncertainty (K Factor), Cutting Wooden Beam | 1,8 m/s² |
