Categories: Impact Wrenches

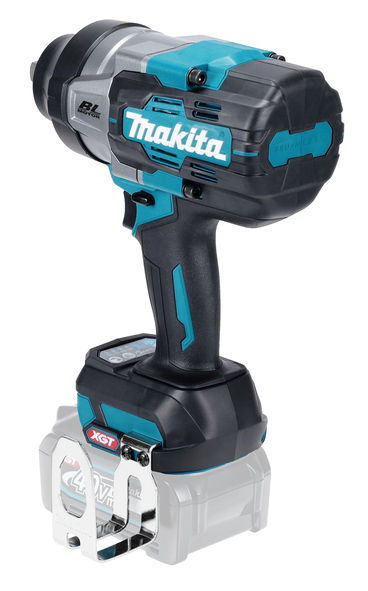

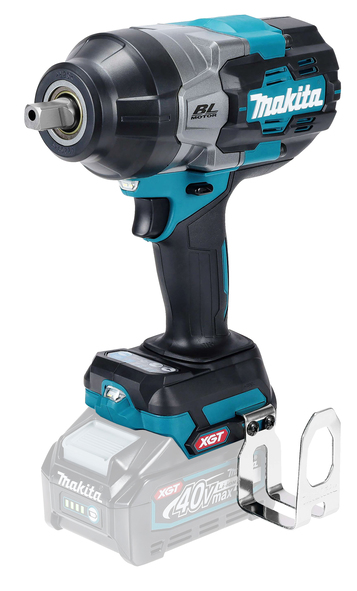

Makita TW003GZ01 – 40Vmax Impact Wrench 1,360Nm (1/2″ Square, Pin detent)) with Makpac case
£316.00 £263.33 excl. VAT
SKU: TW003GZ01
Delivery: This item is usually shipped within 1–3 days.
Impact Wrench XGT ®
40Vmax, 1/2″
Model TW003G is a impact wrench powered by a 40Vmax XGT Li-Ion battery. The tip shape of the anvil has been changed to a 12.7mm (1/2″) square drive and socket retention to a pin detent.
Suitable for tasks such as chassis maintenance and construction site work. Driving shank 12.7mm (1/2″) Square, pintent. Max fastening/Nut-busting torque: 1,600Nm. 4 stage impact power selection. Automatic impact stop system in forward/reverse rotation. Trigger switch with full speed mode.
User benefits
- Brushless maintenance-free and long-life motor
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Electronic 4 stage impact power selection for added versatility
- Automatic impact stop system for avoiding under- and over-tightening
- Twin LED lights with pre-glow and afterglow functions for better illumination and more accurate work
| Technical specifications | |
|---|---|
| Voltage XGT (Nominal Battery Voltage) | 40 V |
| Brushless Motor | Yes |
| No load speed | 0 – 800 / 1000 / 1200 / 1800 min⁻¹ |
| Max Fastening Torque (Impact Drill) | 200 / 400 / 820 / 1360 Nm |
| Nut-busting torque | 1600 Nm |
| Tightening Capacity (Standard Bolt) | M12 – M36 |
| Tightening Capacity (High Tensile Bolt) | M10 – M27 |
| Impacts per Minute (IPM) | 0 – 1600 / 2000 / 2300 / 2400 min⁻¹ |
| Drive Square | 1/2 “ |
| Sound Power Level (LWA) | 104 dB(A) |
| Sound Pressure Level (LpA) | 96 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 3,8 – 5,0 kg |
| Product Dimensions (L × W × H) | 213 × 94 × 303 mm |
| Product net weight | 3,1 kg |
| Vibration Level (Impact Tightening) | 20,5 m/s² |
| Vibration Uncertainty (K Factor) | 2,7 m/s² |
