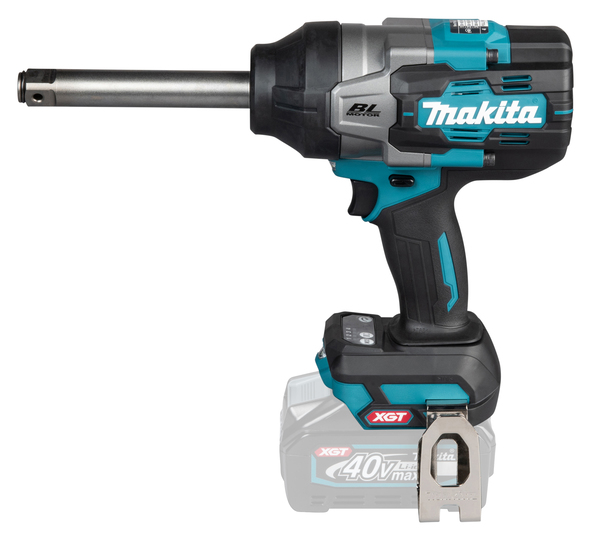

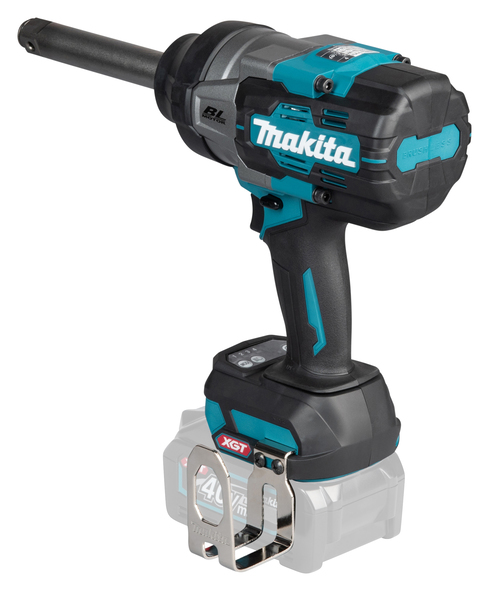

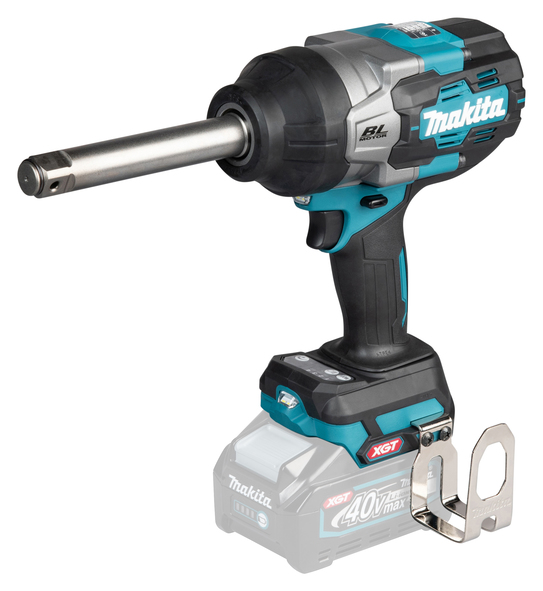

40Vmax Impact Wrench XGT®
3/4″, 1 500 Nm, 0 – 1 800 min-¹
Model TW011G is an Impact Wrench, High power, equipped
with a long anvil and powered by a 40Vmax XGT® Li-Ion
battery.
Main feature and benefits: Tip shape: Long anvil with
19mm (3/4″) Square drive. Style of socket retention:
C ring (with a hole). Electronic 4-stage impact power
selection. Constant speed control.
User benefits
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Electronic 4 stage impact power selection for added versatility
- Brushless maintenance-free and long-life motor
- Ergonomic soft grip handle provides increased comfort
| Technical specifications | |
|---|---|
| Voltage XGT (Nominal Battery Voltage) | 40 V |
| Brushless Motor | Yes |
| No load speed | 0 – 500 / 700 / 1100 / 1800 min⁻¹ |
| Max Fastening Torque (Impact Drill) | 50 / 150 / 450 / 1500 Nm |
| Nut-busting torque | 1900 Nm |
| Tightening Capacity (Standard Bolt) | M12 – M36 |
| Tightening Capacity (High Tensile Bolt) | M10 – M27 |
| Impacts per Minute (IPM) | 0 – 1400 / 2000 / 2600 min⁻¹ |
| Drive Square | 3/4 “ |
| Sound Power Level (LWA) | 112 dB(A) |
| Sound Pressure Level (LpA) | 104 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 4,3 – 5,5 kg |
| Product Dimensions (L × W × H) | 329 × 94 × 303 mm |
| Product net weight | 3,6 kg |
| Vibration Level (Impact Tightening) | 15,6 m/s² |
| Vibration Uncertainty (K Factor) | 2,4 m/s² |
