Functions
Large saw with depth.

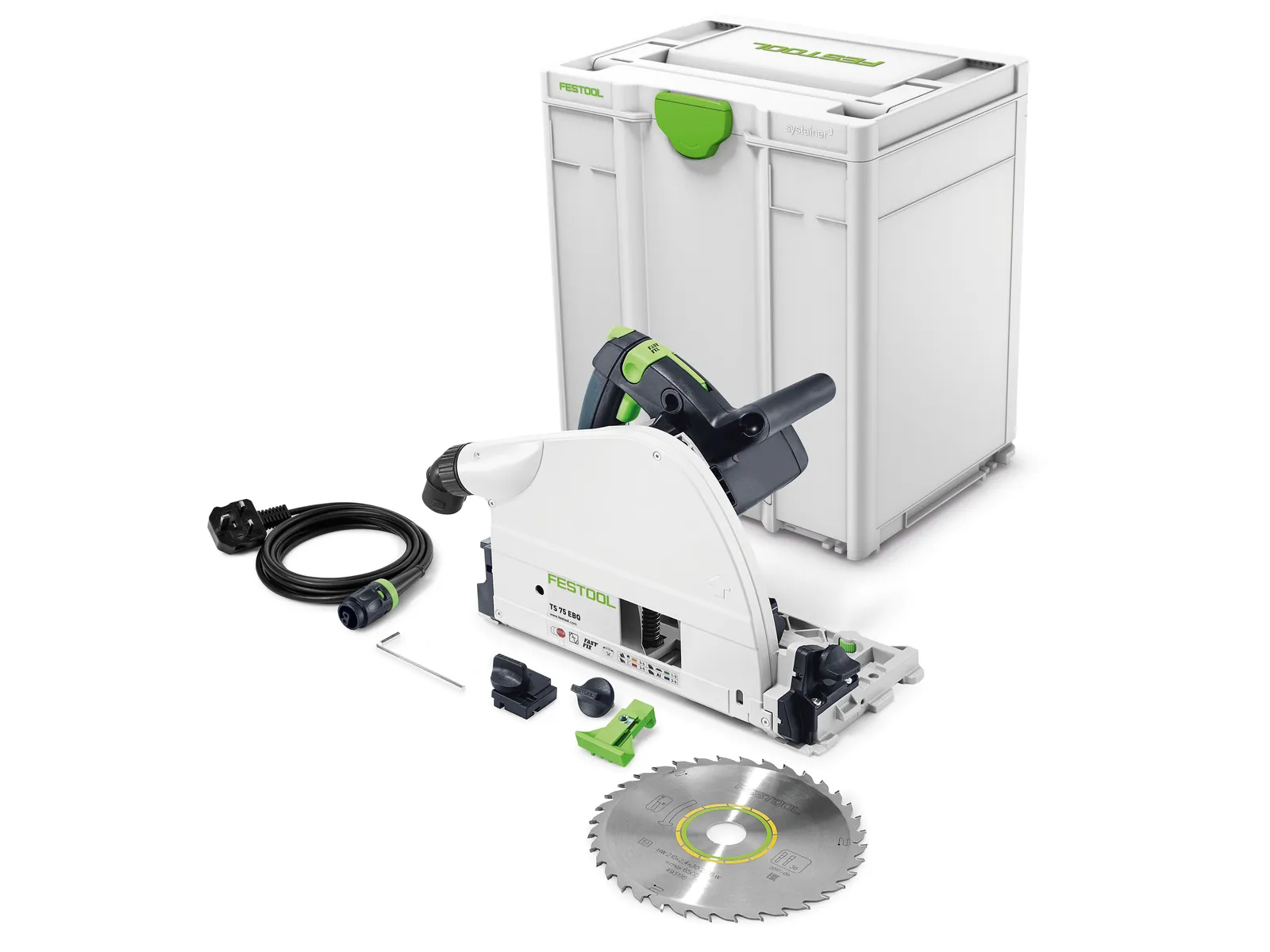

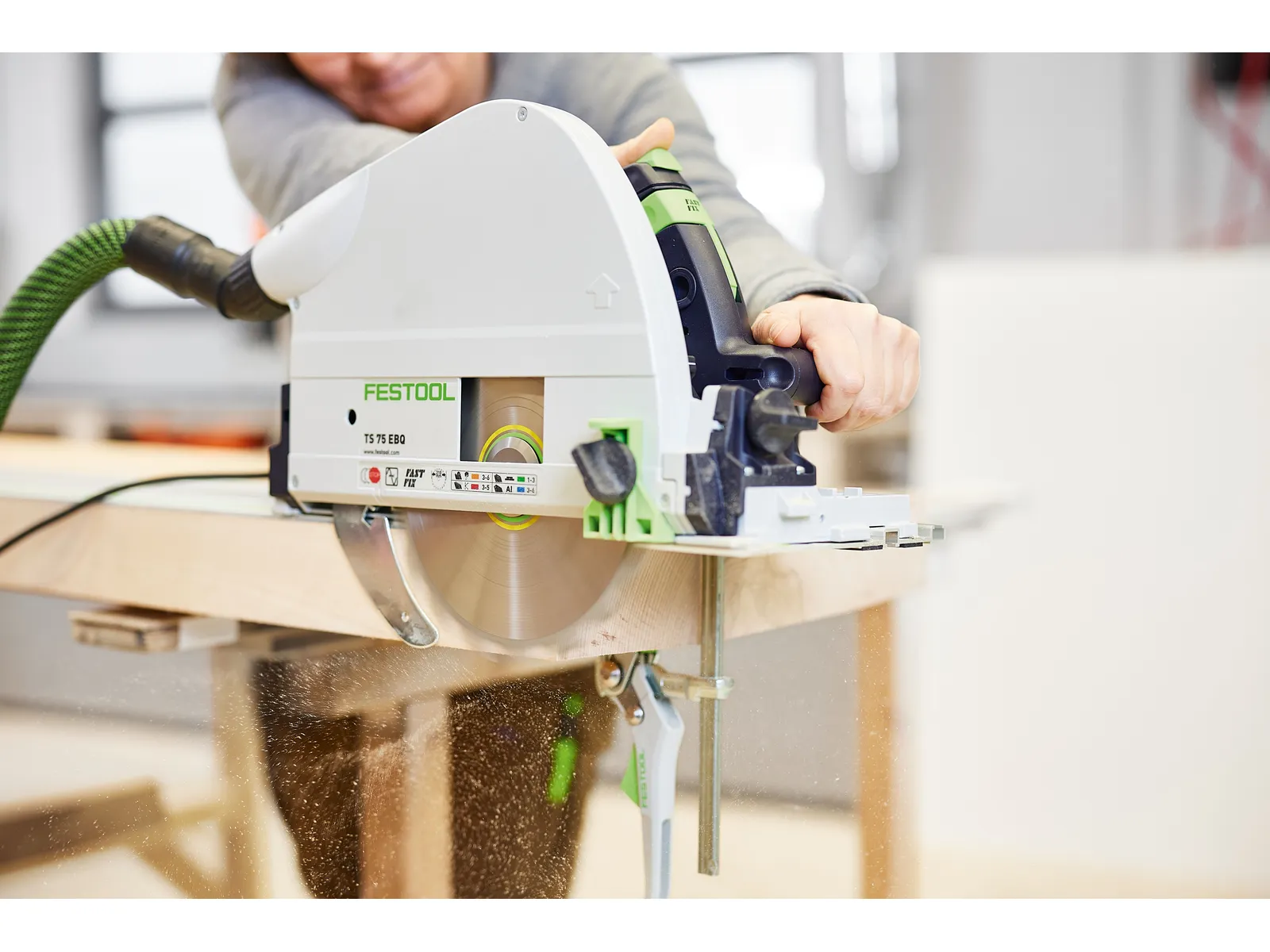

For a greater cutting depth up to 75 mm. Follows only one line. Accurate to the millimetre and without splinters. With the necessary force for each material – lightweight and easy to handle. And the motor with three bearings including MMC electronics for an exceptional service life. The TS 75 combines considerable power and a light weight in a compact device. Together with the guide rail, the TS 75 ensures flexible, fast and precise work.
- 75 mm cutting depth for even more application possibilities
- FastFix: quick and easy saw blade changing and adapting to the working material
- Safe and convenient – with sliding clutch and KickbackStop
- Spring-loaded spacer wedge for unhindered plunge cuts
- Tool-less play setting on the guide rail
- Quick-acting brake system for safe, convenient sawing
- Attachable splinterguard for high-quality working results
Performance features:
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
MMC Multi Material Control electronics
“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
Splinter guard
Patented splinterguard for splinter-free cuts on both sides when sawing.
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
Guide system
Patented guide system for safe guidance of saws and router bits.
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
Quick-acting brake
For safe work when planing, sawing and routing.
Utilisation
Main applications:
- Precise circular in materials up to 75 mm thick

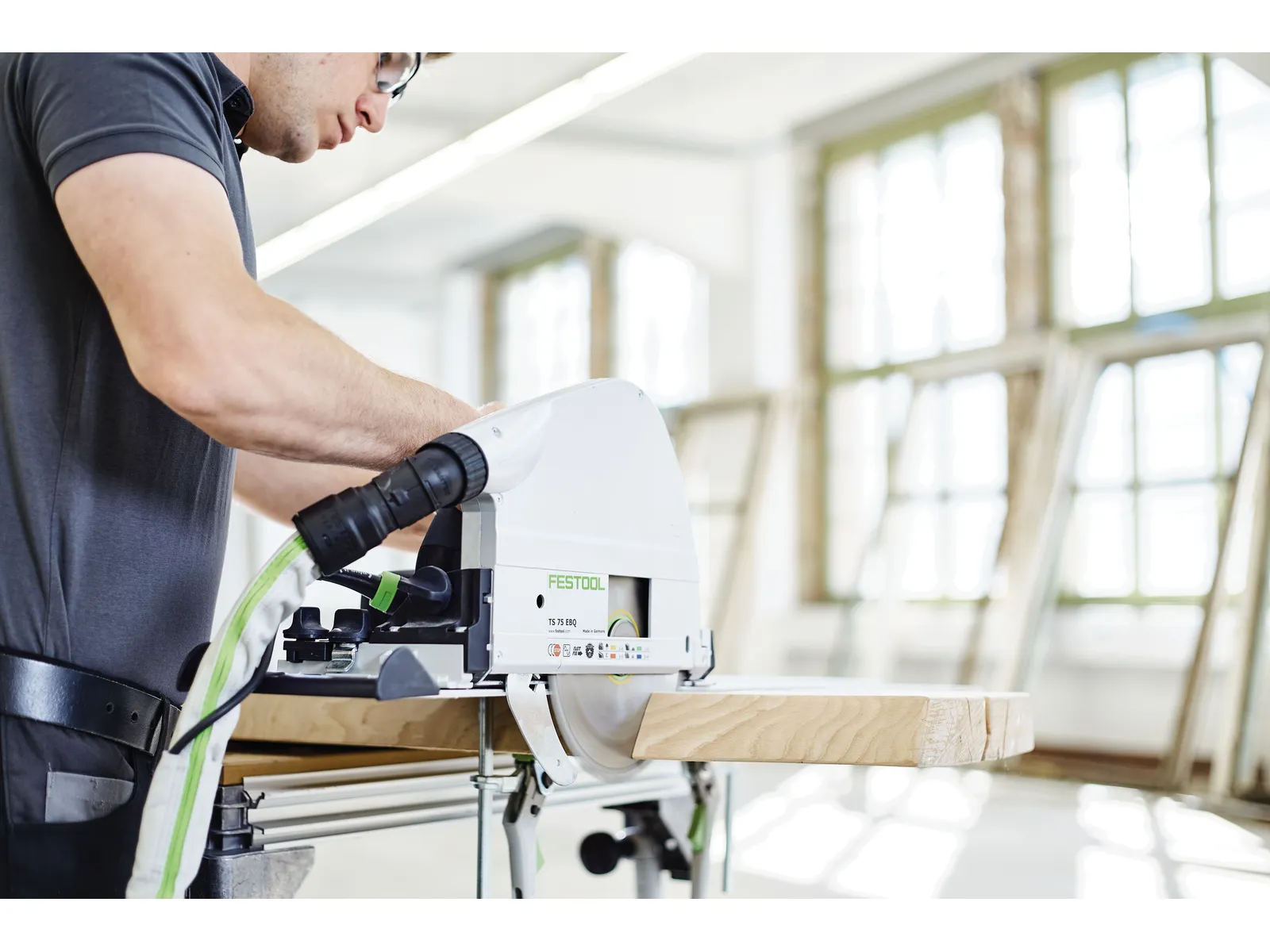

- Cutting house doors to length using guide rail and circular saw
- Cutting and machining conservatory profiles
- Cutting cable ducts to length cleanly and easily
- Accurately cutting false floors to size
- Cutting multi-layered boards
Technical data:
Power consumption
1 600 W
Idle engine speed
1 350 – 4 400 min⁻¹
Diameter of the saw blade
210.00 mm
Angular range
0 – 47 °
Cutting depth
0 – 75 mm
Cutting depth 45°
55 mm
Dust extraction connection diameter
27/36 mm
Cable length
4.00 m
Product weight without accessories
6.50 kg
Transport weight incl. accessories
10.32 kg
Drive type
Mains
Noise and vibration values
Sawing metal: A-weighted sound pressure level, LpA
91.00 dB(A)
Sawing metal: Total vibration average, Ah
3.50 m/s²
Sawing metal: Uncertainty (vibration) K
1.50 m/s²
Sawing metal: A-weighted sound power level, LWA
99.00 dB(A)
Sawing metal: Standards series EN
62841
Sawing metal: Uncertainty (noise) K
3.00 dB
Sawing wood: Total vibration average, Ah
3.40 m/s²
Sawing wood: Standards series EN
62841
Sawing wood: Uncertainty (noise) K
3.00 dB
Sawing wood: Uncertainty (vibration) K
1.50 m/s²
Sawing wood: A-weighted sound pressure level, LpA
91.00 dB(A)
Sawing wood: A-weighted sound power level, LWA
99.00 dB(A)
