Shear Wrench XGT ®
40V Max

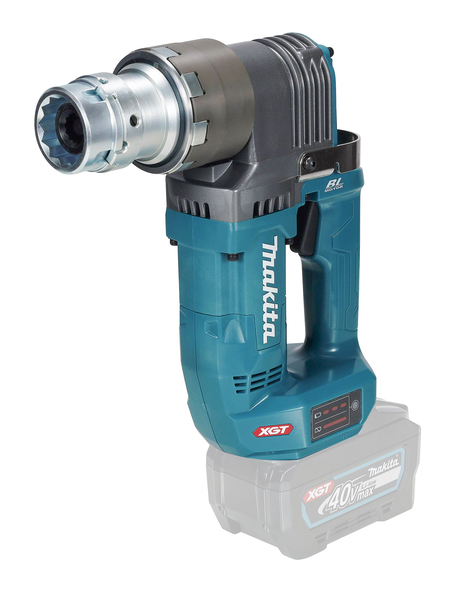

Model WT001G is a cordless shear wrench powered by 40Vmax XGT® Li-Ion battery.
Compatible bolt size: M16 (5/8″), M20 (3/4″), M22 (7/8″). Work amount: approx. 250 pcs of M22 Torque shear bolt with a 4.0Ah battery. Battery capacity warning lamp: LED blinks to notify user of decrease in battery capacity. Hook designed for use with Shoulder belt to carry the tool.
User benefits
- Brushless maintenance-free and long-life motor
- Electric brake for maximum productivity and increased operator safety
- Anti-restart function minimises accidental start-up
- Battery capacity warning function automatically notifies the user about reduction in battery capacity with the decrease of illuminance
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
| Technical specifications | |
|---|---|
| Voltage XGT | Yes |
| Nominal Battery Voltage | 40 V |
| Brushless Motor | Yes |
| No load speed | 17 min⁻¹ |
| Max Fastening Torque Impact Drill | 804 Nm |
| Sound Power Level (LWA) | 90 dB(A) |
| Sound Pressure Level (LpA) | 82 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool weight with battery | 5,2 – 5,9 kg |
| Product Dimensions (L x W x H) | 289 x 95 x 340 mm |
| Max. fastening torque Hard/Soft | – / 804 Nm |
| Product net weight | 4,6 kg |
| Vibration Level, Screwdriving Without Impact | ≤ 2,5 m/s² |
| Vibration Uncertainty (K Factor), Screwdriving Without Impact | 1,5 m/s² |
